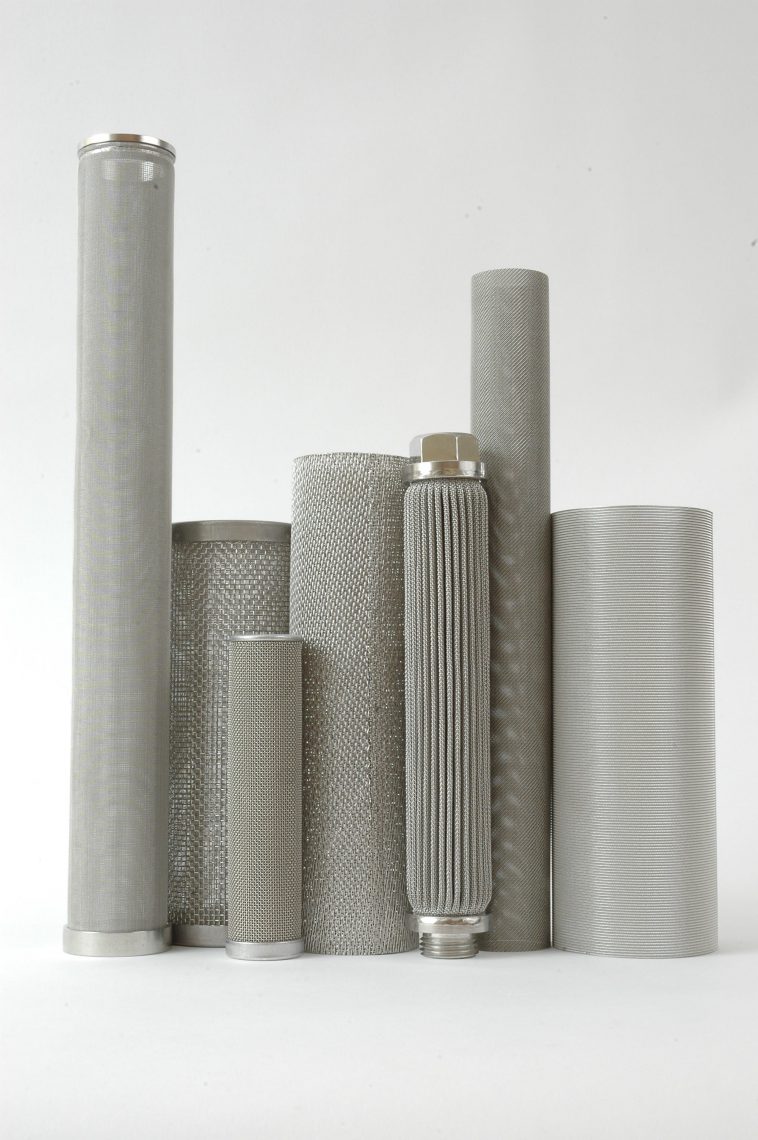

INDUSTRIAL METALLIC FILTER CARTRIDGES

Porous Metal Filters offer a wide range of cleanable stainless steel filter cartridges, in many different markets and applications. Our cartridges fit in most commercial housings, or we can design and manufacture a cartridge to meet custom applications.


Media Design:

316L Stainless Steel

  • Pleated.
  • SinterPore® sintered fiber/mesh laminate.
  • Multi layer sintered mesh and fiber metal felt pleated to increase filtration. The fiber metal felt offers depth filtration, while the mesh offers support and rigidity. Fiber/mesh promotes finer filtration, increased dirt holding, and improved permeability.
  • SinterPore® sintered mesh laminate.
  • Multi layer sintered mesh pleated to increase filter area and filtration life. These elements are easily cleaned and back flushable.

SinterPore® Sintered Laminate Tube Filter

  • Multi layer sintered mesh media that formed and welded into a cylinder. SinterPore® filter elements are back flushable, rigid, surface filtration, and endures many cleaning cycles.

PMF Cartridges:

Standard Sizes:

  • 2.375” diameter in lengths of 10, 20, 30, and 40 inches

Fittings:

  • Double open end
  • 222 double O-rings
  • 226 double O-rings with locking tabs
  • 1” NPT
  • Custom fittings

Gasket Material:

  • Viton
  • Buna
  • Other material available upon request

Quality:

  • PMF manufactures products to the highest current industry standard, certified to meet ISO 9001

The PMF Screen Code Is Illustrated Below


PFC

316L Media Type

  • PFC Sintered Fiber Media, Cylinder
  • PFP Sintered Fiber Media, Pleated
  • PWC Wire Mesh Cylinder
  • PWP Wire Mesh, Pleated
  • PLS Sintered Laminate, Cylinder
  • PLP Sintered Laminate, Pleated

5

Micron Rating

5, 4, 0, 1, 0, 0, 1, 0, 6, 0, 1, 5, 0, 2, 0, 7, 0, 3, 0, 8, 0

S

Fitting Metallurgy

S - 316L

N - Nitronic 60

10

Cartridge Length

10......10″ – 250mm

20.....20″ – 500mm

30.....30″ – 750mm

40.....40″ – 1000mm

AF

Inlet/Cap Fitting Configuration

A.....Female 1″NPT

B.....Male 1″ NPT

C.....Open Gasket Fitting

D.....Standard 222 double O-rings

E.....Standard 226 double O-rings

F.....blind end

B

Elastomasters

B.....Buna N

N....Neoprene

V....Viton

E....EPDP

P....PTFE

*Custom Media, Media Alloys, Fitting Configurations, Gasket Materials And Lengths Available Upon Request.
